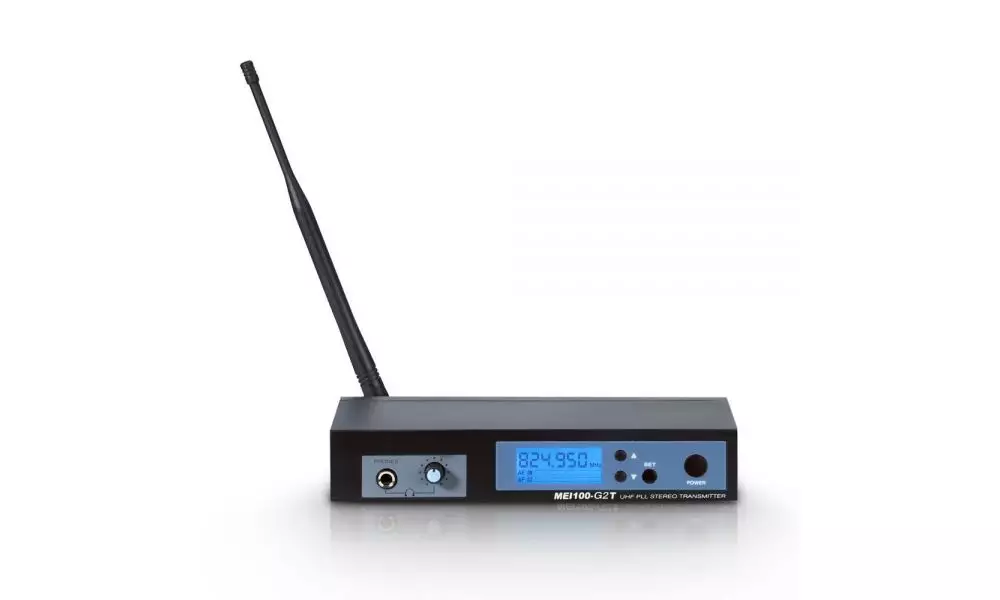

LD Systems MEI 100 G2 T

Características de LD Systems MEI 100 G2 T

• Model name: LDMEI100G2T
• Product type: Transmitter
• Radio frequency range: 823 - 832 and 863 - 865 MHz
• Channels: 96 (8 groups of 12 channels)
• Transmission method: FM, stereo
• RF output: 10 mW
• Frequency response: 80 Hz - 15 kHz ± 3 dB
• Inputs: 2
• Input connections: XLR/ 6.3 mm jack (combo)
• Input impedance: 8,5 kOhm
• Antenna connector: TNC
• Controls: up, down, set, power, volume headphone, mono/stereo, AF level (left/right)
• Indicators: LC display
• Power supply: 12 - 18 V DC
• Width: 212 mm
• Height: 38 mm
• Depth: 90 mm
• Accessories (included): Antenna, power supply, headphones
