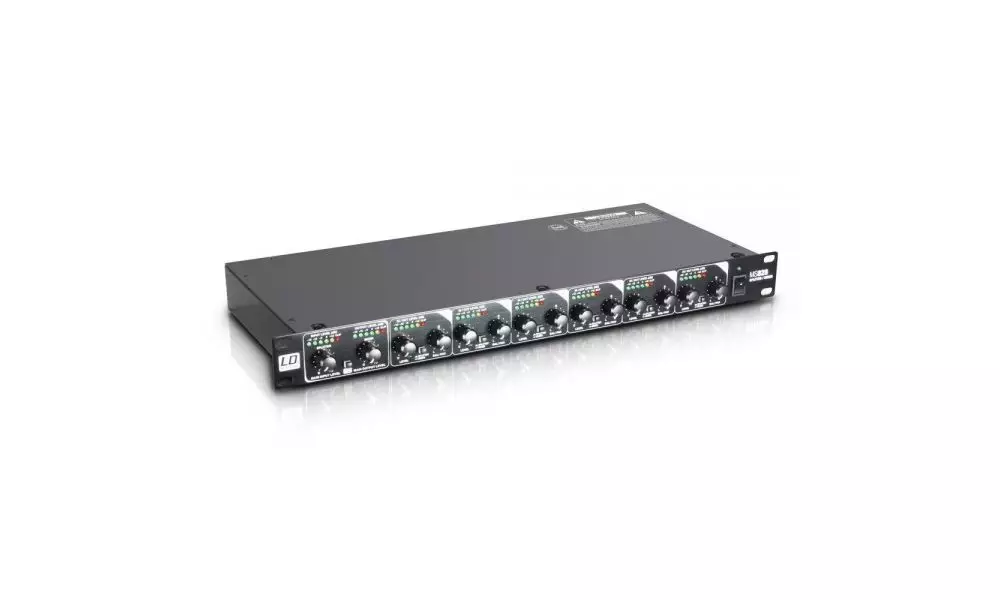

LD Systems MS 828

Características de LD Systems MS 828

• Type: live, installation
• Channels: 8
• Mono input channels, line: 6
• Stereo line input connectors: 4x XLR, 2x 6.3 mm jack
• Mono line input type: electronically balanced
• Stereo input channels, line: 1
• Stereo line input connectors: 2 x XLR
• Stereo line input type: electronically balanced
• Input impedance: 50000 ohms (balanced), 25000 ohms (unbalanced)
• Maximum input level: + 21 dBu
• Nominal working level: -10 dBV to +4 dBu
• Mono output channels: 6
• Mono output connectors: 4x XLR, 2x 6.3 mm jack
• Mono output type: electronically balanced
• Stereo output channels: 1
• Stereo output connectors: 2x XLR
• Stereo output type: electronically balanced
• Output impedance: 60 ohms (balanced), 30 ohms (unbalanced)
• Maximum output level: + 22 dBu
• Frequency response: 5 Hz - 40000 Hz
• THD: 0,0008 %
• S/N ratio: 85 dB
• Controls: Main Input Level, Main Output Level, Main Link, Level Channel 1-6, Bal/Pan Channel 1-6, Splitter/Mixer Channel 1-6, Power
• Indicators: Input Level LED Indicator (6-segment), Output Level Indicator (6-segment), In/Out Level Channel 1-6 (6 -segment), Power
• Operating voltage: 220 - 240 V AC, 50 - 60 Hz
• Power socket: IEC power socket
• Power consumption: 15 W
• Fuse: T 315 mAL, AC 250V
• Dimensions (W x H x D): 483 x 44.5 x 216 mm
• Accessories included in package: power cord
